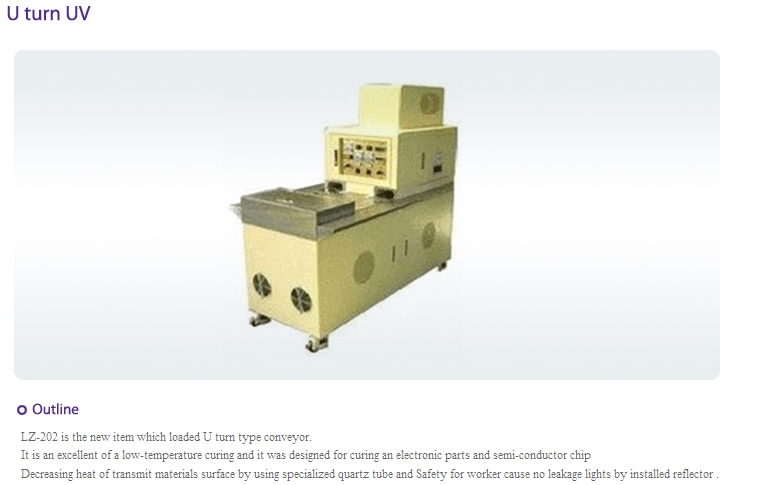

| Product Name：U turn UV |
| Product Detailed： |
|
Item
|
Description
|
Remark
|
|
Product
|
U Turn Type Conveyor UV Curing System
|
|
|
Model
|
LZ-U Series
|
|
|
Application
|
PCB, Electronic Parts
|
|
|
General
Specification
|
Dimension
|
mm(L) × mm(W) × mm(H)
|
|
|
Loading Type
|
Roll or Conveyor
|
|
|
Curing Speed
|
0 ~ 10 m/min
|
|
|
Curing Width
|
TBD
|
|
|
Conveyor Belt
|
Mesh or SUS
|
|
|
System Control
|
Manual or Sequence
|
|
|
Exhaust Type
|
Fan
|
|
|
UV LAMP
|
Lamp
|
High-Pressure Mercury Lamp(Metal Halide UV Lamp)
|
|
|
Q’ty
|
1
|
|
|
Overall Length
|
120 mm ~ 2220 mm
|
TBD
|
|
Arc Length
|
100 mm ~ 2100 mm
|
TBD
|
|
Wattage/Cm
|
80, 100, 120 ~ 160
|
TBD
|
|
Wavelength Range
|
250 ~ 420nm
(Peak wavelength: 365nm)
|
|
|
Cooling Type
|
Forced Air Cooling
|
|
|
Power
|
220V or 380V, 1P or 3P, 50Hz or 60 Hz
|
|
|
Color
|
Standard (Ivory)
|
|
|
Warranty
|
12 Months (Excluded Supplies)
|
|
|
|
